GPS Tracking device G400

G400 is a smart 4G journey monitoring device designed to monitor and manage personal vehicles and commercial vehicle fleet suitable for most vehicle types. Possessing a compact, eye-catching and delicate design that meets the IP65 standard, the G400 has good water and dust resistance, helping the device to operate stably and improve its lifespan. Along with the optimal circuit design, the ability to latch position is fast, accurate positioning.

In addition to the standards of GPS positioning, moving route, vehicle speed, G400 is also capable of tracking, protecting, anti-theft and anti-robbery from unlimited KM within 1 second via phone. Especially with many outstanding improvements, G400 can automatically prevent forgetting to turn off the Smartkey lock knob, turn off Defense with PIN code when the vehicle is offline. All of those great uses have helped G400 become a universal key to protect, prevent vehicle theft, and be the number one enemy of thieves

Category: Motobike GPS Trackers

G400 is an All-in-one device, tracking location, online moving schedule, and has many features to help protect and prevent theft, such as Turn on/off Defense remotely and many smart protection warnings. G400 is a comprehensive solution to optimize operation and improve fleet management efficiency.

G400 FEATURES

POSITIONING AND ONLINE ROUTE MONITORING

GoTrack G400 combines LBS and GPS satellite positioning platform, advanced 4G mobile system, for fast coordinates determination and accurate positioning. Global location detail search support.

ABILITY TO TURN ON/OFF ANTI-THEFT DEFENSE REMOTELY

G400, in addition to the standard capabilities of GPS positioning, speed monitoring and control, is the optimal device for security monitoring, remote anti-theft, as well as monitoring any unusual impacts from the outside to the user’s vehicle.

UNAUTHORIZED MOVEMENT WARNING

Receive vehicle-related abnormal warnings by phone such as: vehicle being jailbroken, abnormal movement to control, monitor and detect bad situations that the vehicle encounters. Use these smart features to maximize your vehicle’s protection and anti-theft.

AREA MANAGEMENT, SAFE GEOGRAPHIC AREA

By creating points that connect to each other to form a Geographic Area to be monitored. Every time the vehicle enters / exits the pre-set Geographic Area monitoring, a warning will be sent to the user’s phone number.

ANTI- Theft, ANTI- Robbery REMOTELY VIA APP

With just a smartphone, your vehicle becomes 100% safe with Remote Defense On/Off feature. After you turn on Remote Defense, if you don’t turn off Remote Defense on the App, no matter how you act, you can’t start the engine to make the vehicle move far. This is an extremely smart feature & highly effective in anti-theft.

GOTRACK’S TRACKING SOFTWARE PLATFORM

GoTrack monitoring software & application system is developed by GoTrack expert team, helping users to monitor vehicles anytime, anywhere online.

G400 APPLICATION

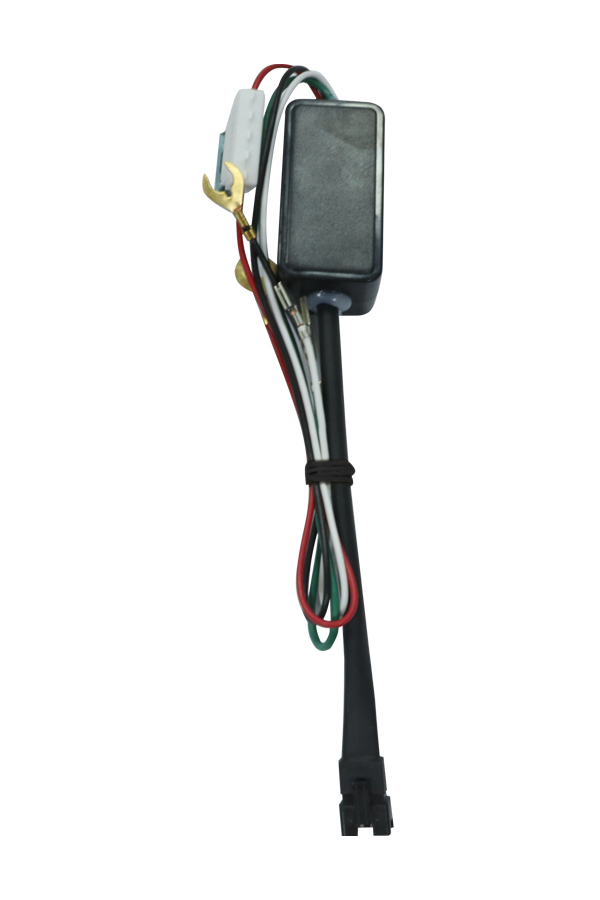

PACKING G400 SET WITH POWER CORD INTEGRATED RELAY

01 – G400 Device

01 – Power cord integrated relay

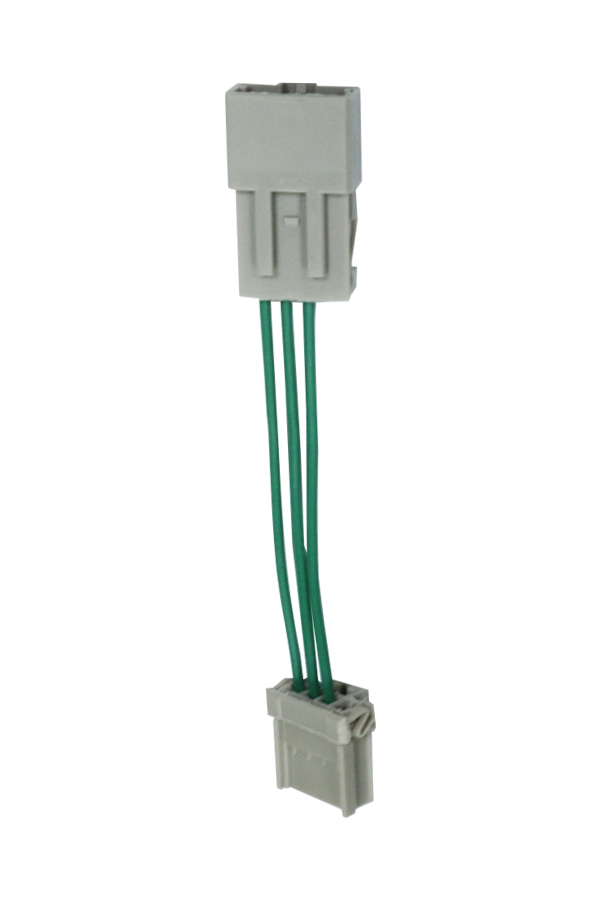

01 – Jack

01 – Sim card

PACKING G400 SET WITH STANDARD POWER SUPPLY

01 – G400 Device

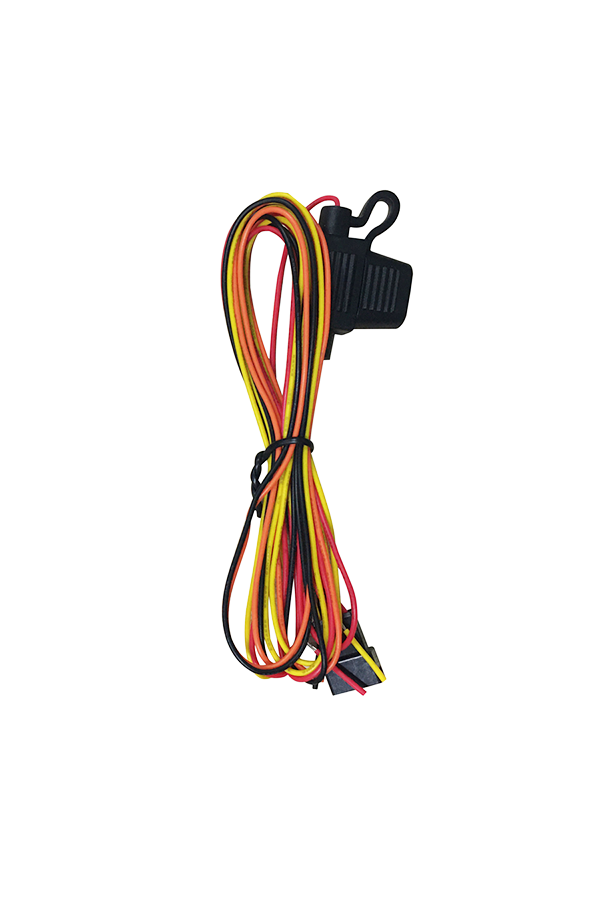

01 – Power cord set

01 – Sim card

Operating environment
Operating temperature	-20÷85^oC ±0.5%
Storage temperature	0÷60^oC
IP rating	IP65
Humidity	5÷90% ±2.5%
Electrical characteristics and consumption
Active range	9÷36VDC
Rated supply voltage	12/24VDC
Active	48÷60mA
Idle	5÷15mA
GPS Sleep	1÷3mA
Protection function	Anti-short circuit, over-current
	Over-voltage protection, voltage pulse suppression
	Reverse polarity
Backup power	– Pin Li-Poly
Digital output	Maximum load current: 50mA Maximum voltage: 24VDC
Digital input	0-36VDC

Read physical description
Dimension	86.0 x 37.0 x 13.8 (mm)
Protection level	Dust/water ingress resistance IP65
Weight	42.6 Gram
SIM card	Nano SIM Card
Wireless and satellite connection
Communication network	4G LTE/GSM
Frequency band	TDD-LTE B34/B38/B39/B40/B41 FDD-LTE B1/B3/B5/B8 GSM/GPRS/EDGE 900/1800 MHz
GNSS	Positioning system: GPS+Glonass+Beidou
	Tracking sensitivity: -162 dBm Recapture sensitivity: -160 dBm Cold Start TTFF: -148 dBm Cold starts: 35s Recapture TTFF: ≤1s Device heats up TTFF: ≤1s
	Accuracy: < 10m
Sensor (integrated on board)
Acceleration sensor	3 axis linear acceleration Measuring range 2 ÷ 16g high resolution 16bits
Voltage sensor	Input voltage measurement
Signal connection port
Power supply VDC	9-36VDC Power supply for device
01 Sim Nano	SIM slot
01 Micro USB	Port configuration and data extraction
Status indicator light
LED light	GPS – Blue (Blue light), 4G – RED (Red light)
