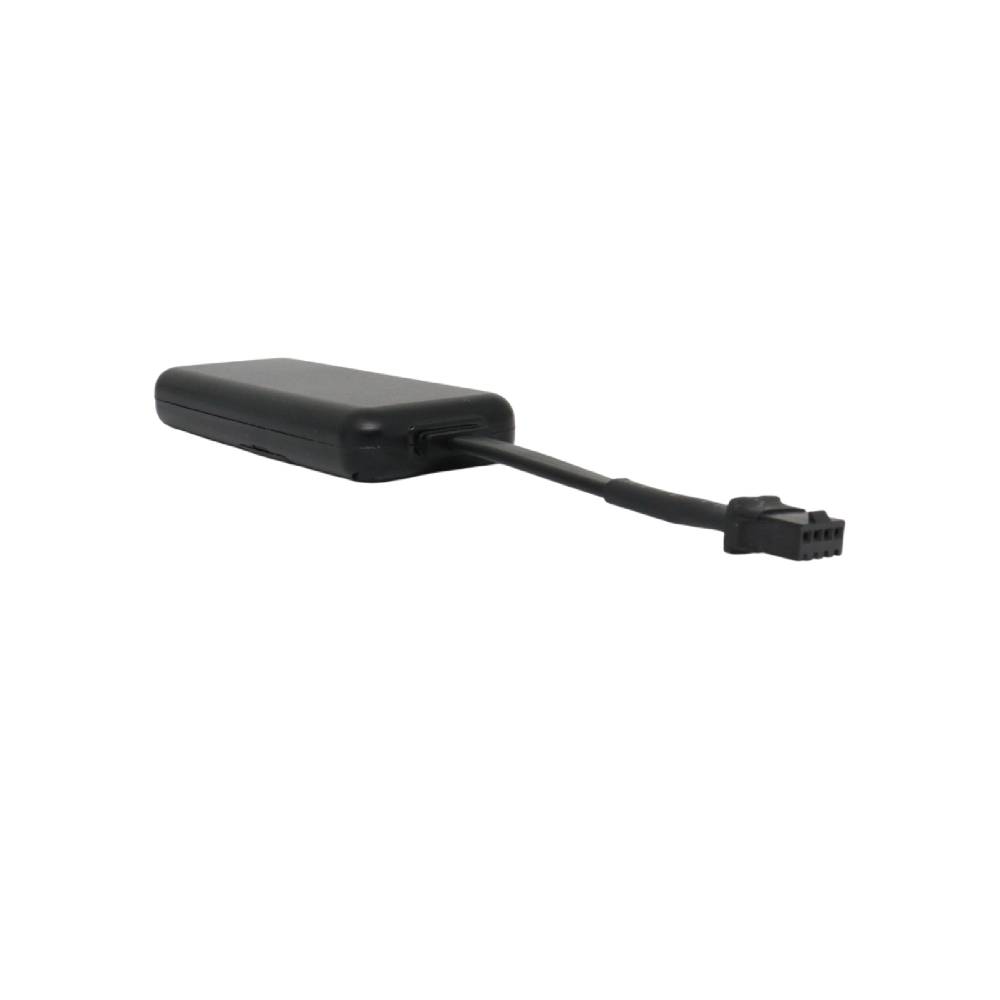

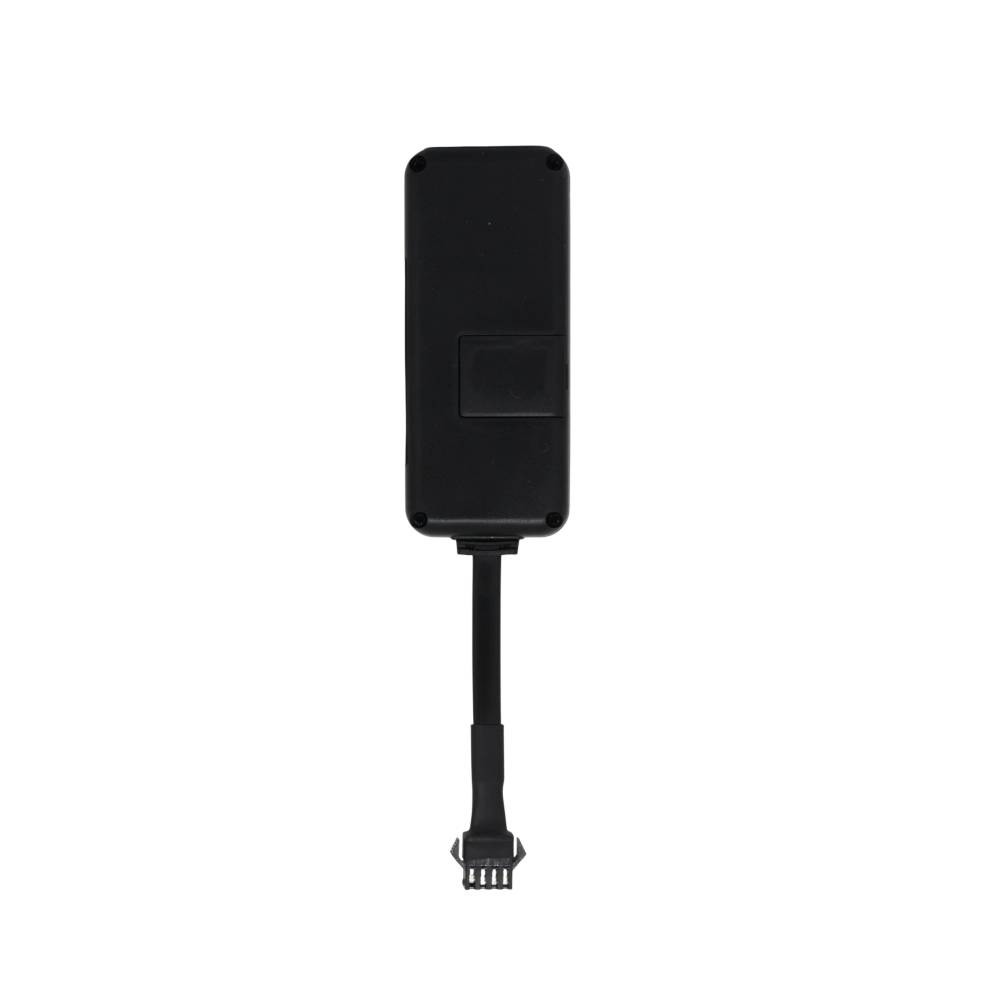

G500 4G GPS Vehicle Tracker

G500 features a sleek, compact design about the size of a lighter, combining positioning, monitoring, and vehicle protection on a single management platform. Users can remotely track the vehicle’s current location, route history, and key operating status.

A concealed LED indicator and a wide operating voltage range make G500 compatible with multiple vehicle types. Its alert functions, remote management capabilities, and flexible feature expansion suit a wide range of applications and make it easy to move the device between vehicles when required.

Your vehicles may be out of sight, but they should never be out of control. Once your fleet is on the move, real-time monitoring and remote management should move with it.

Compact Design – Optimized for Motorcycles and Cars, Minimizing Installation Space

Compact yet powerful. Easy to install on motorcycles and personal cars, helping your fleet operate smoothly while staying connected.





Versatile Across a Wide Range of Vehicles – Built to Last

Supporting a wide voltage range of 9–90V, the device can be easily installed on various types of vehicles. Its rugged, enclosed design ensures stable performance and exceptional durability over time.

G500 4G – A New Generation of Tracking Technology

Featuring advanced 4G LTE, the G500 provides reliable performance, faster connectivity, and enhanced stability across Southeast Asia.





Integrated Relay – Instant Control

The integrated relay supports remote engine cut-off when the vehicle is moving at a speed of no more than 20 km/h, helping strengthen vehicle protection, reduce risk to the driver, and maintain remote control of the vehicle. (Feature availability depends on the device configuration.)



Automatic Smartkey Knob Shut-Off

If the user forgets to turn it off, G500 automatically switches off the Smartkey knob after 150 seconds, helping reduce battery drain and strengthen vehicle protection.



Steering Lock Tamper Alert via Phone Call

Detect potentially dangerous situations early so timely action can be taken to protect the vehicle.





What Sets the G500 Apart

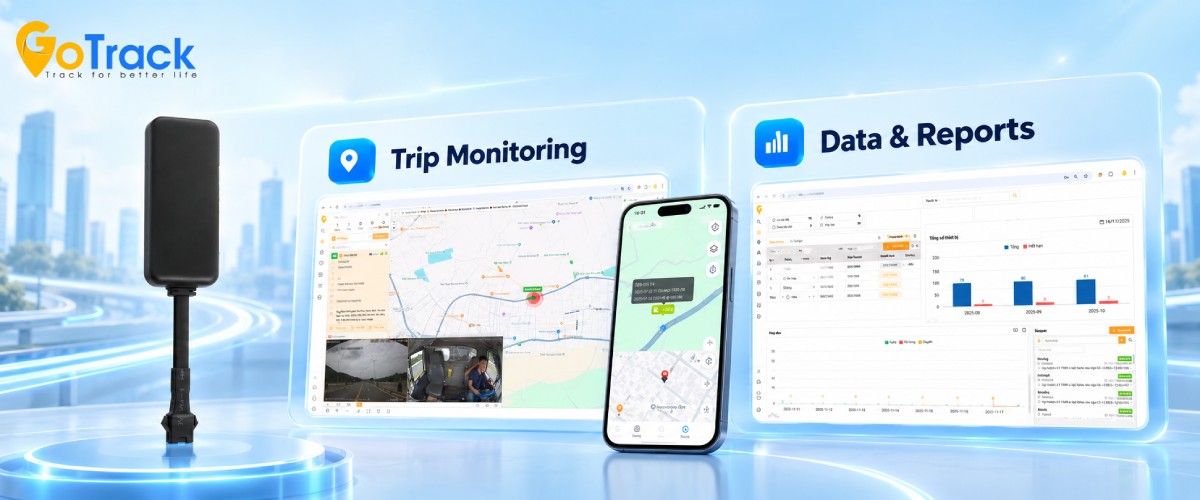

GPS Tracker + GoTrack365 Platform – A Smart Combination







GoTrack Builds the Data Foundation for Your Fleet

Product features







Wide Range of Applications



G500 Package Options

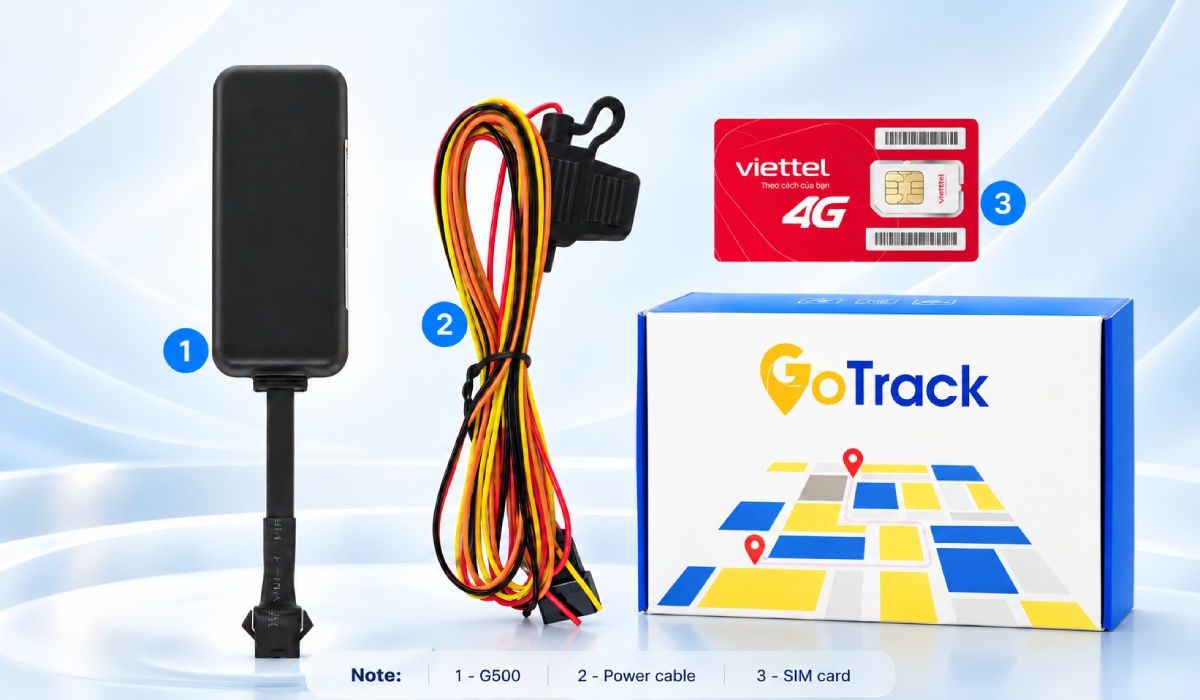

Standard G500 Package

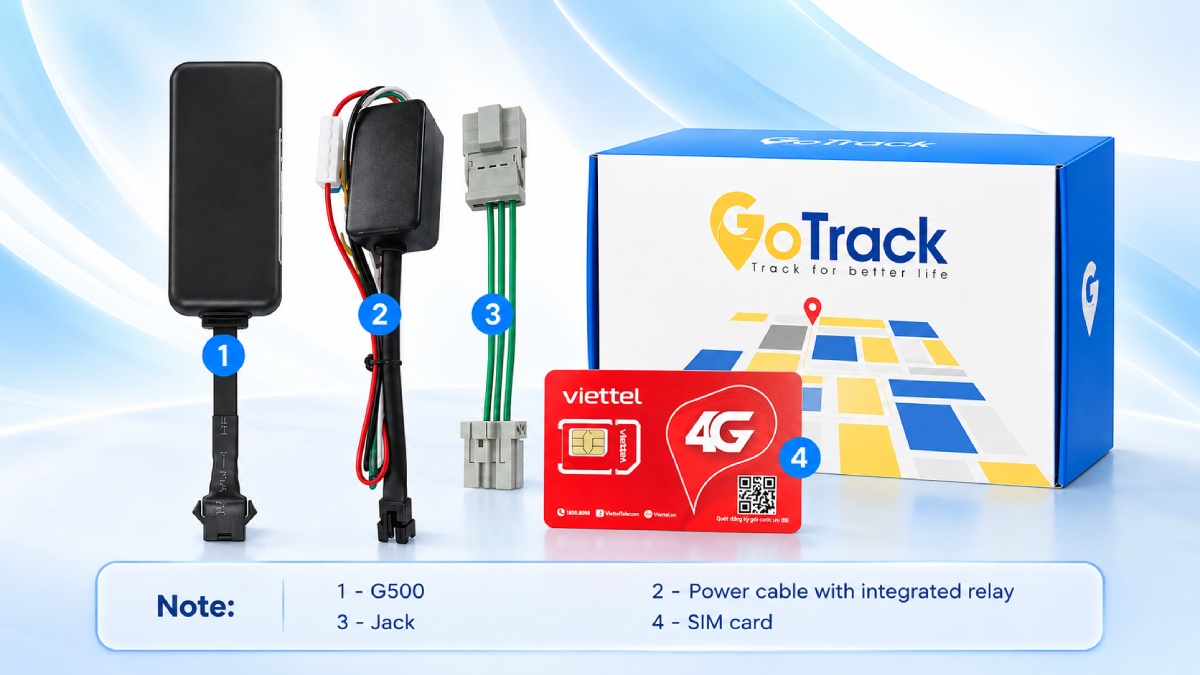

Premium G500 Package



Operating Environment
Operating temperature -20÷85ºC ±0.5%
Humidity 5÷90% ±2.5%
Electrical Characteristics and Power Consumption
Operating voltage range 9÷90VDC
Rated supply voltage 12/24VDC
Current consumption (Active) 48÷60mA
Current consumption (Sleep) 1÷3mA
Protection functions Short-circuit protection, overcurrent protection, overvoltage protection, voltage surge suppression, reverse-polarity protection
Backup power Optional
Physical Specifications

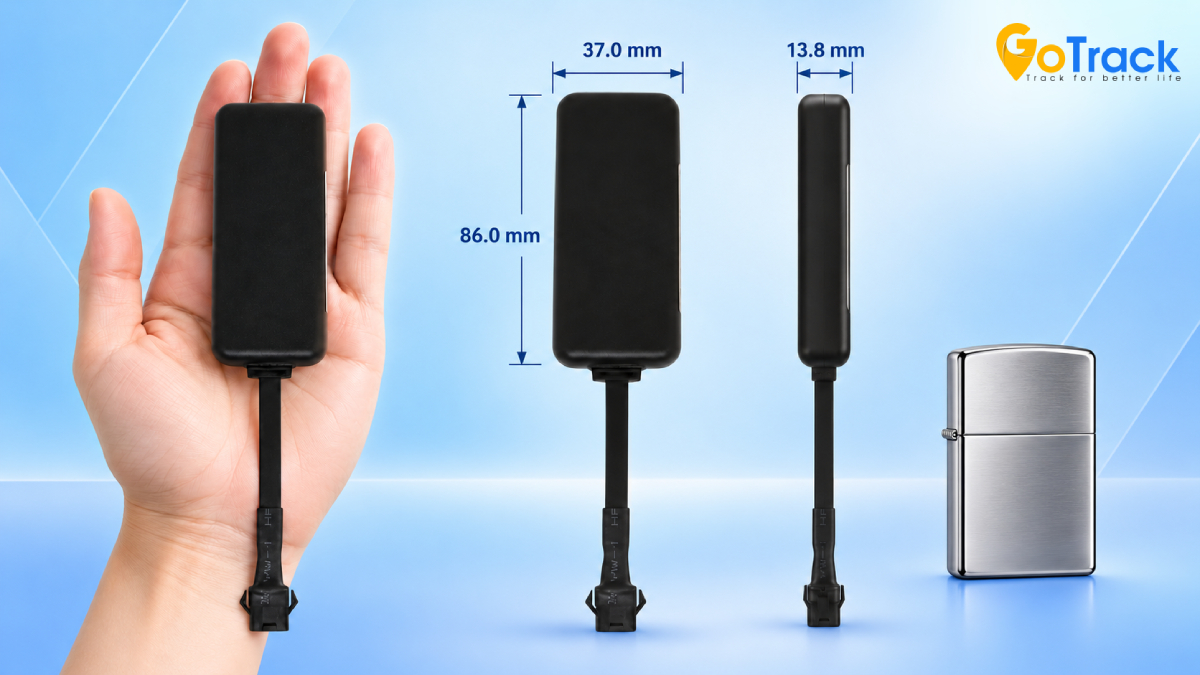

Dimensions 86.0 x 37.0 x 13.8 (mm)
Weight 42.6 Gram
Antenna Built-in
SIM card Nano SIM Card
Wireless and Satellite Connectivity
4G-LTE LTE CAT1: 10(DL)/5(UL)
GPRS/EDGE 236.8(DL)/236.8(UL)
SMS Yes
Positioning systems GPS + GLONASS + BeiDou
Positioning accuracy < 10 m
Antenna Built-in
Status Indicators
LED indicators 2 LEDs: GPS – Blue, 4G – Red
Monitoring System
App and Website Web and mobile platforms
GoTrack365 Platform Integrated
Power cord Power cord integrated relay Jack Sim card
