GPS Tracking Device S200 2G

Real-time online tracking
Compliant with QCVN 31: 2014/BGTVT
Review travel history, distance, time, speed, stop location.
Use the 2G network
Intelligent engine on/off alert, protect your vehicle
ACC detection – Ignition state
Create and monitor geofences, you will receive an alert when both enters or leaves the zone.
Driver safety warning: overspeed, overtime…

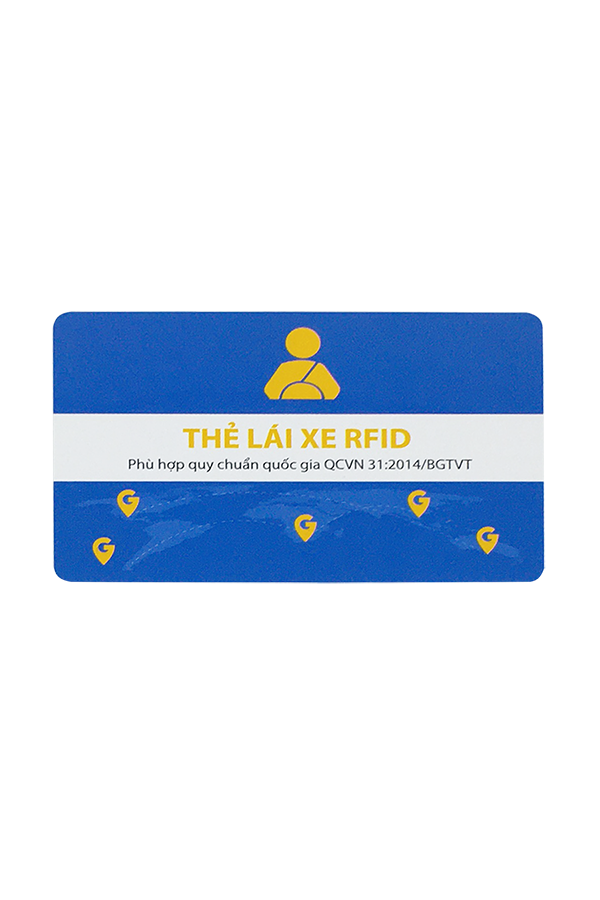

Driving management via RFID tags, analyzing driving behavior
All in one, support fuel level sensor, temperature sensor, and watch the vehicle via image of camera
Especially support connecting 2 sensor devices at the same time
High technology, saving power
Monitor vehicle through app and website, keep updating the lastest new of firmware
12-month warranty

S200 GPS Tracking Device is accurate positioning and modern circuit design

S200 is an advanced vehicle GPS Tracking Device with excellent analysis and features. With a linear 3-axis accelerometer and a 3-axis gyroscope that reduce GPS noise, the sensitivity of the GPS receiver is enhanced. Therefore, S200 will automatically calculate based on an algorithm that ensures accurate vehicle location even in poor or no GPS areas. The intelligent and flexible warning system helps to increase the safety of the driver, minimizing the false warning rate.

The S200 GPS Tracker is also capable of 3 levels of voltage consumption such as active, idle and sleep mode, making the device intelligently power-saving.

A special feature compared to other lines on the market, S200 also has the ability to connect 2 sensor devices in parallel. From there, build a perfect monitoring solution for the fleet.

PROCESSING & STORAGE
CPU
Core	Arm® 32-bit Cortex®-M0 CPU, 48 MHz
Low-power	Yes
Internal Flash	256 KB
SRAM	32KB
HW unit	Serial Communication interfaces, NVIC, CRC, DMA, RTC
External Flash	8-32MB
SENSORS
Acceleration sensor	3 axis linear acceleration Measuring range 2÷16g high resolution 16 bits
Temperature sesor	12 bits resolution, CPU temperature management
Voltage sensor	Input voltage measurement
NETWORK CONNECTIONS &SATELLITE
2G/GPRS
Modem	SIMCOM SIM868
Antena	Internal
Bands	Quad-band: GSM 850 MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz
Data transfer	GPRS: Uplink/Downlink up to 85.6Kbps
SMS	Yes
Protocol	TCP/IP
GNSS
Module	Inside Sim868
Chipset	MT2503D
Systems	GPS+Glonass
Efficiency	Tracking:-165 dBm Reacquisition:-160 dBm Cold starts:-148 dBm Cold starts:28 s Warm start:26 s Hot starts:<1s
Antenna	Built-in patch antenna ceramic with A high gain LNA
Accuracy	< 10m
RFID reader
Chipset	CR95HF
Frequency	13,553 ÷ 13,567 MHz
Standard	ISO/IEC 14443 Type A and B ISO/IEC 15693 (single or double subcarrier) ISO/IEC 18092
Main reflex	≤ 4,5 mW ERP
Fake reflex	Operating mode: 0.67 μA/m (-3.5 dB μA/m) Standby: 0.06 μA/m (-24.5 dB μA/m)
Reading distance	Max 3 cm
Compatible cards	I.CODE SLI, TAG_IT
QCVN	QCVN96:2014/BTTTT QCVN55:2010/BTTTT
ELECTRICAL PROPERTIES & CONSUMPTION
Range	9÷36VDC
Rated supply voltage	12/24VDC
Active / Idle/ GPS sleep	48÷60mA / 22÷24mA / 10÷12mA
Protection function	+ Anti-short circuit, overcurrent + Overvoltage protection, voltage pulse suppression + Reverse polarity
Backup battery	Pin Li-Poly Supercapacitor: 0.1F 3v6
PHYSICAL PROPERTIES
Size	94.0 x 55.0 x 16.8 (mm)
Weight	50gr
Housing	ABS plastic + PC, fireproof
