SM400 Plus Camera Recorder and decree 10

View photos & videos (livestream) online 24/24
Review photos & videos, manage vehicles through photos & information: time, channel, address, number of photos taken
Send pictures to the website of the Directorate for Roads of Vietnam
Track location/coordinates, route, travel history
Support connecting temperature sensor device
Support parallel connection of 2 oil sensors
Manage driver information via RFID card
4G network connection, fast & strong speed
Driving safety warning: speeding car, driving continuously for 4 hours
Review media photo & video history
12-month warranty

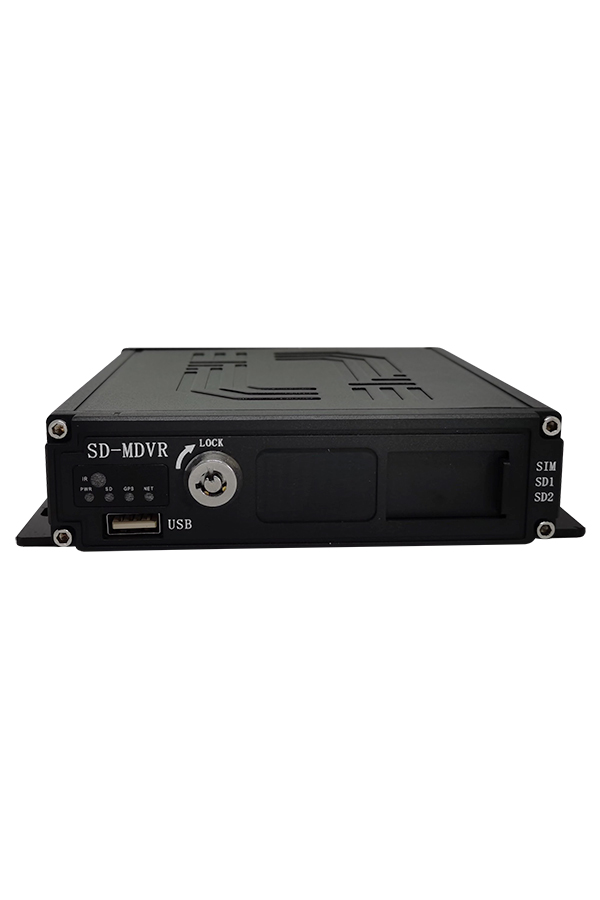

SM400 Plus is a high-end recorder that monitors live images/videos via Online

The Decree 10 camera set for online video surveillance is the most “great” solution in vehicle / fleet management, it helps you improve business performance in one day. This high-end camera set uses super fast 4G connection, stable data transmission, not only helps monitor through images but also watch online videos via App/Website. The device owns a large storage capacity, sharp image and video quality in all lighting conditions, when viewing, photos can be easily zoomed in and out, and there is a detailed and insightful report system for the manager.

With this line of high-end surveillance cameras, the device supports to connect up to 4 Camera eyes, observe inside and around the vehicle detailedly.

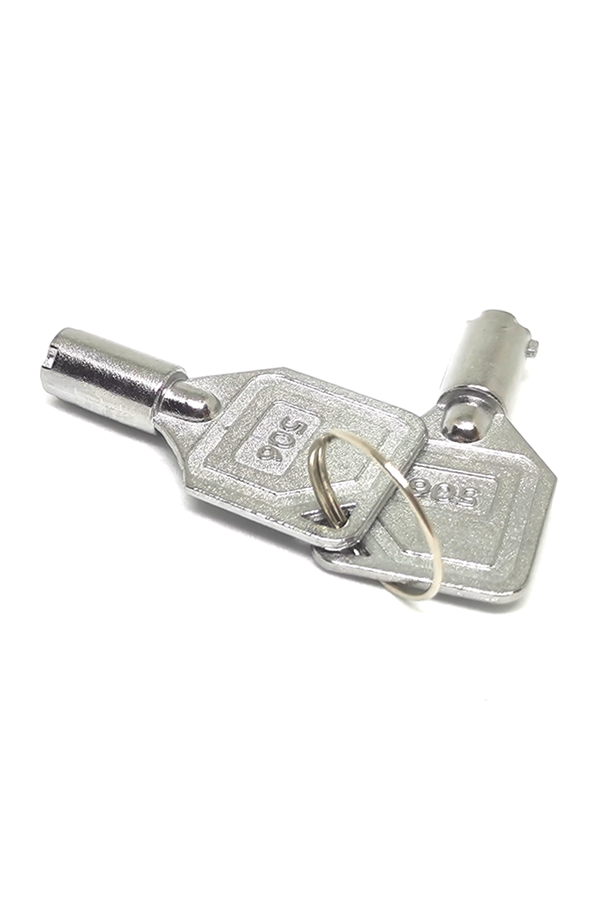

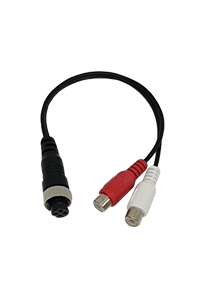

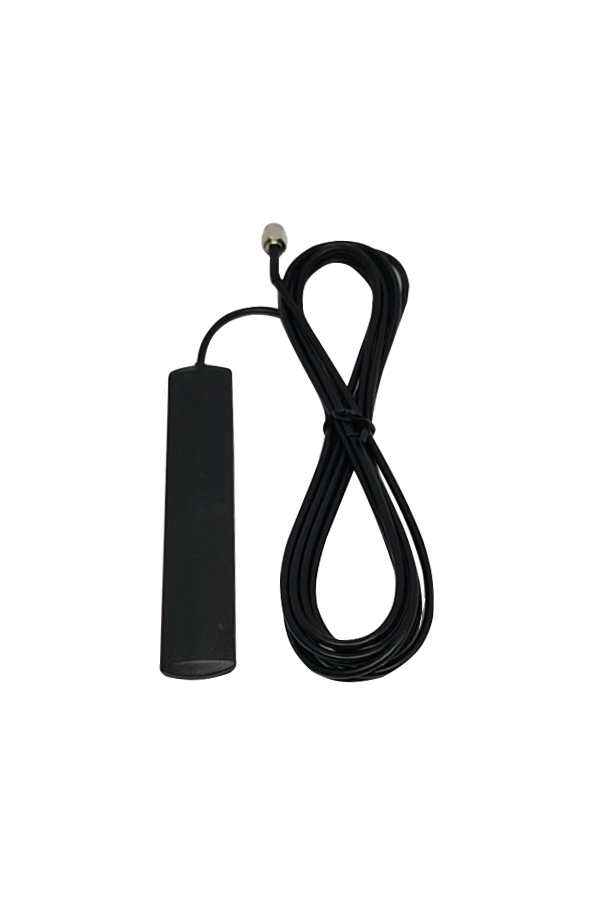

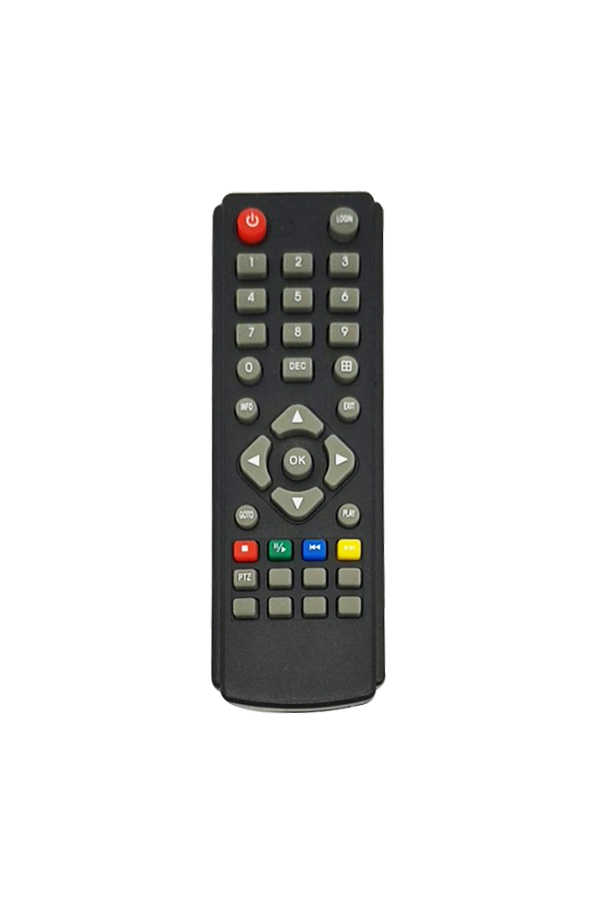

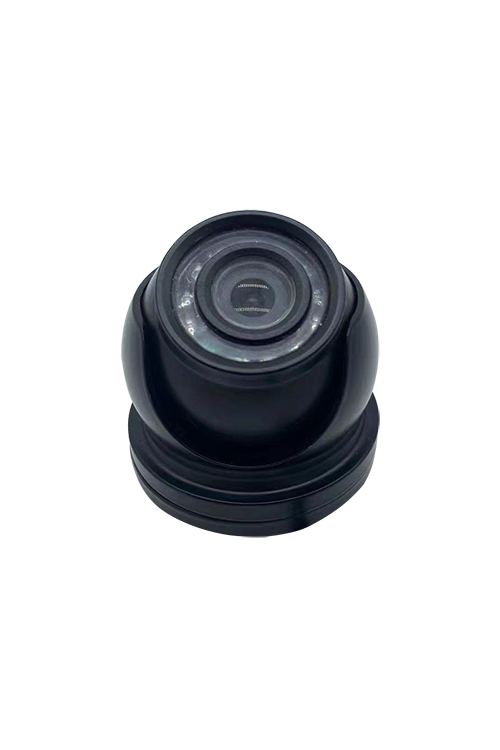

Full set of Decree 10 surveillance cameras including: 01 SM400 Plus recorder, 01 S400 standard positioning and surveillance camera and accompanying accessories.

SYSTEM
OS	Linux
VIDEO
Input	4 Channel AHD(1080P/720P)
Output	1 Channel
Total resources	PAL: 4720P@25fps(AHD) or41080P@15fps(AHD) NTSC : 4720P@30fps(AHD) or41080P@18fps(AHD)
Video standard signal	Power Level: 1Vpp Impedance: 75Ω NTSC / PAL Optional
SOUND
Input	4 Channel
Output	1 Channel
Audio standard signal	Power level: 2Vpp Input impedance: 4.7kΩ
SCREEN
Split screen	1-4
OSD	GPS info, alarm, vehicle number, speed, date/time
RECORDING
Video Compression	Video: H.264/H.265
Sound	Audio: ADPCM, G.711A, G.726
Image resolution	similar: PAL: 1080P(1920X1080), 720P(1280X720), D1(704X576), HD1(704×288), CIF(352×288) NTSC: 1080P(1920X1080), 720P(1280X720), D1(704×480),HD1(704×240),CIF(352×240).
Image quality	Adjustable 1-8 levels (1 is best)
Recording mode	Schedule/Alarm (sensor activation, speed, accelerometer, video loss, temperature)
Pre-recorded	0-60 s
After recording	0-60 minute
Mirror video	Yes
NETWORK
WIFI / 3G / 4G (select one or more from the list)	802.11b/g/n/ac/EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ,…vv…
POSTIONING

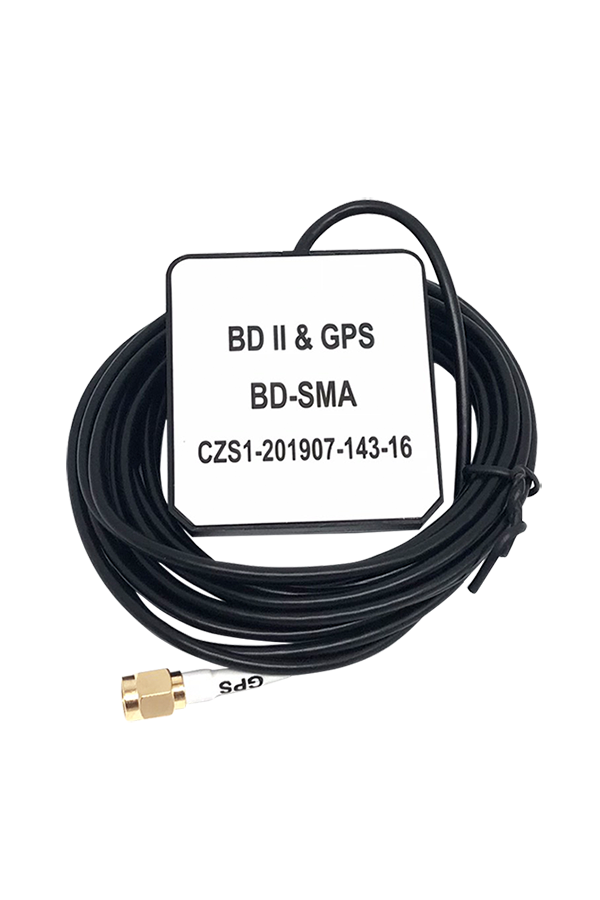

GPS	Location tracking, speed detection and time synchronization
MEMORY

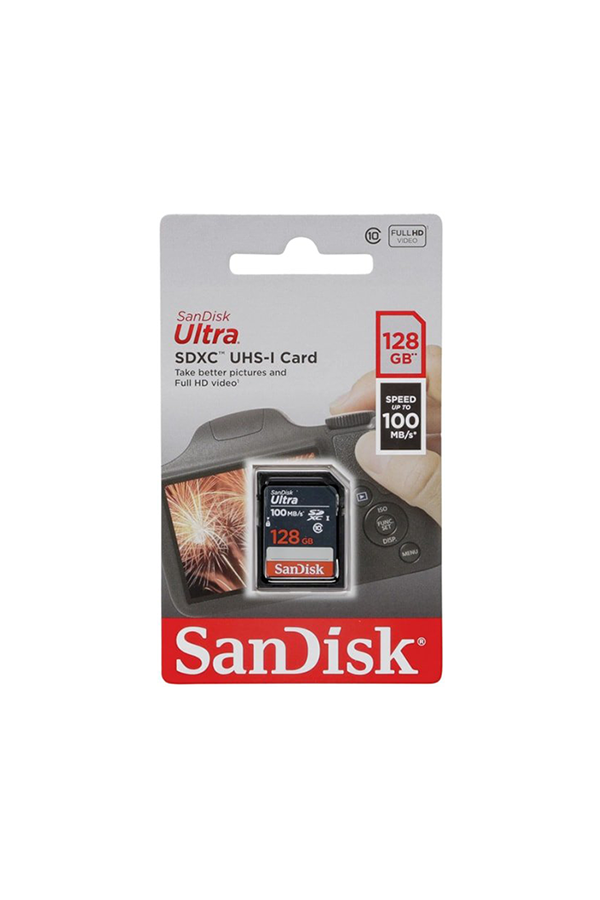

SD	SD card slot x 2 (Default 1)
DISPLAY
USB	USB2.0 x 1
RS485	RS485x1(optional)
RS232	RS232 × 1(optional)
SIM	SIM Slot x 1(optional)
Sensor	4 inputs, 1 outputs

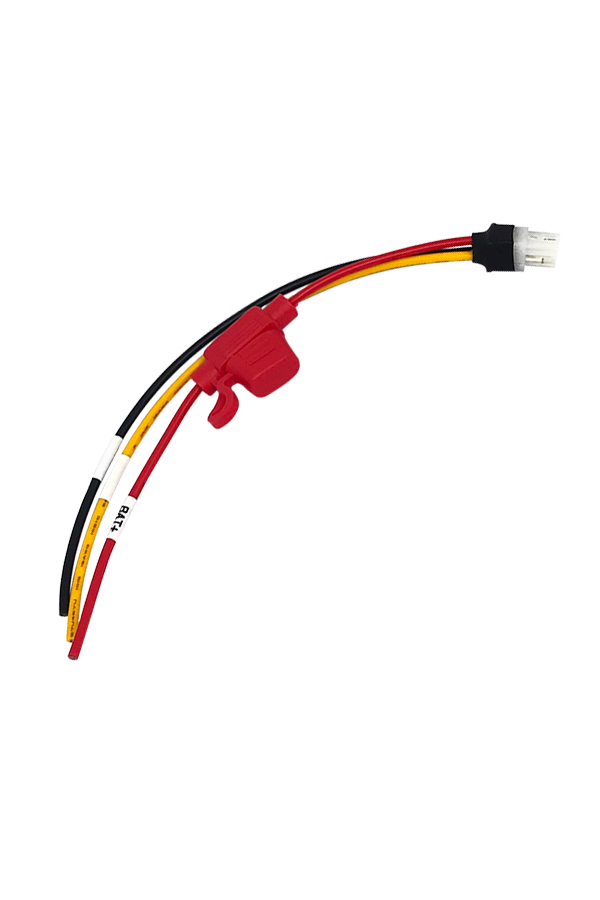

POWER SUPPLY
Input	DC8-36V
Output	12V@2000mA
Maximum Power Consumption	36W
PHYSICAL FEATURES
Dimensions (L × W × H)	148mm x 138mm x 35mm
TWeight	480g
ENVIRONMENT
Operation temperature	-40℃- +70℃
Relative operation humidity	8%~90%(Not concentrated)
