SM400 and Camera Recorder decree 10

View the latest photos directly via App/Website 24/24. Review photos in 3 days
Monitor images & information: time, channel, address, number of photos
Image data sent to the website of the Directorate for Roads of Vietnam in accordance with regulations
Locate coordinates, routes, travel history, vehicle status
Support connecting temperature monitoring device thiết
Support parallel connection of 2 oil sensors
Manage drivers with RFID cards
4G network connection
Safety warning: vehicle speeding, driving continuously for more than 4 hours
Remote Firmware Upgrade & On-Demand Upgrade
12-month warranty

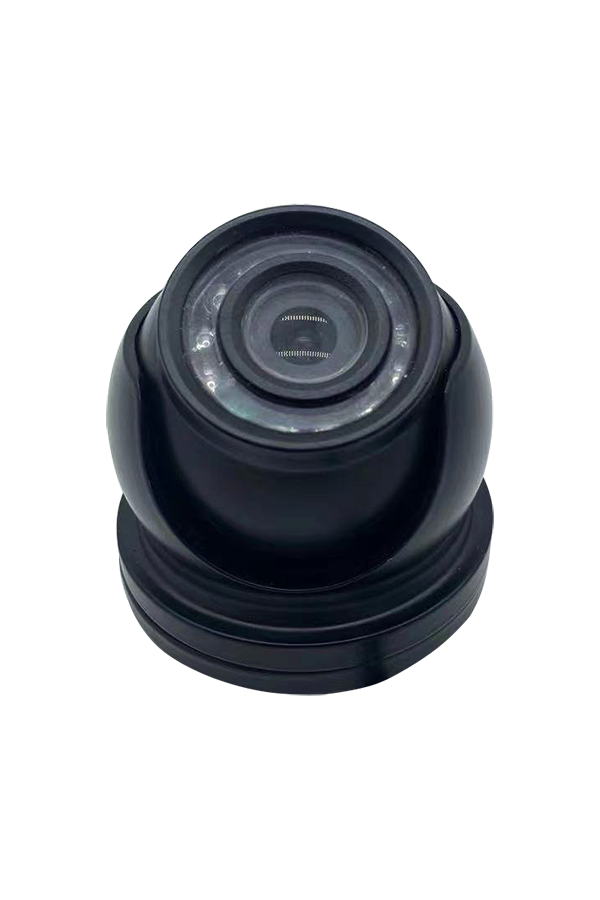

SM400 recorder combines S400 standard positioning and wide camera eye lens.

This camera set is a combination of “cruise monitoring device with SM400 recorder and surveillance camera”, all connected to form a Decree 10 surveillance camera set according to the standards of the Ministry of Transport. The camera set has strong and stable data transmission speed, sharp images, standard memory capacity, can be integrated with many peripheral devices providing you with many solutions for overall management of all issues about vehicle/fleet.

SM400 connecting surveillance cameras and standard positioning is the “perfect” couple that provides you with a comprehensive solution for vehicle management through 24-hour online images. All data is continuously transmitted to your App/Web as well as to the General Department of Roads. It is also the indispensable supporter of Container trucks, passenger vehicles and tractors.

There are two versions for you to choose from: The SM400 recorder specializes in taking pictures and the SM400 Plus recorder takes pictures and watches online videos 24/24.

SYSTEM
OS	Linux
VIDEO
Input	4 Channels AHD(1080P/720P)
Output	1 Channel
Total resources	PAL: 4720P@25fps(AHD) or41080P@15fps(AHD) NTSC : 4720P@30fps(AHD) or41080P@18fps(AHD)
Video signal standard	Power Level: 1Vpp Impedance: 75Ω NTSC / PAL Optional
SOUND
Input	4 channel
Output	1 channel
Audio signal standard	Power level: 2Vpp Input impedance: 4.7kΩ
SCREEN
Split screen	1-4
OSD	GPS info, alarm, vehicle number, speed, date/time
RECORDING
Video Compression	Video: H.264/H.265
Sound	Audio: ADPCM, G.711A, G.726
Image resolution	Similar: PAL: 1080P(1920X1080), 720P(1280X720), D1(704X576), HD1(704×288), CIF(352×288) NTSC: 1080P(1920X1080), 720P(1280X720), D1(704×480),HD1(704×240),CIF(352×240)
Image quality	Adjustable 1-8 levels (1 is best)
Recording mode	Schedule/Alarm (sensor activation, speed, accelerometer, video loss, temperature)
Pre-recorded	0-60 seconds
After recording	0-60 minute
Mirror video	Yes
NETWORK
WIFI / 3G / 4G (select one or more from the list)	802.11b/g/n/ac/EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ,…vv…
POSTIONING
GPS	Location tracking, speed detection and time synchronization
MEMORY

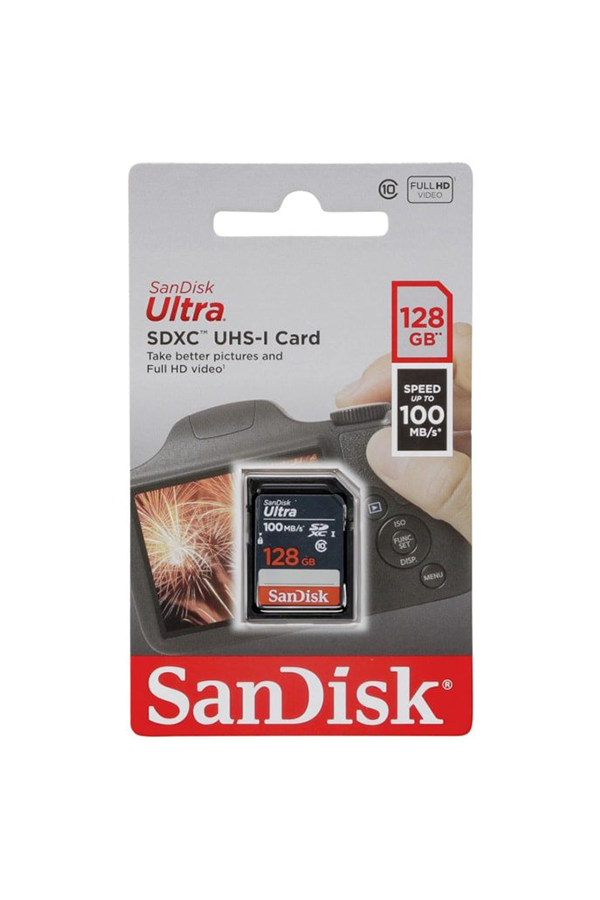

SD	SD card slot x 2 (Default 1)
DISPLAY
USB	USB2.0 x 1
RS485	RS485x1(optional)
RS232	RS232 × 1(optional)
SIM	SIM Slot x 1(optional)
Sensor	4 inputs, 1 outputs
ELECTRICITY SUPPLY
Input	DC8-36V
Output	12V@2000mA
Maximum Power Consumption	36W
PHYSICAL FEATURES
Dimensions (L × W × H)	148mm x 138mm x 35mm
Weight	480g
ENVIRONMENT
Operation temperature	-40℃- +70℃
Relative operation humidity	8%~90%(Not concentrated)
