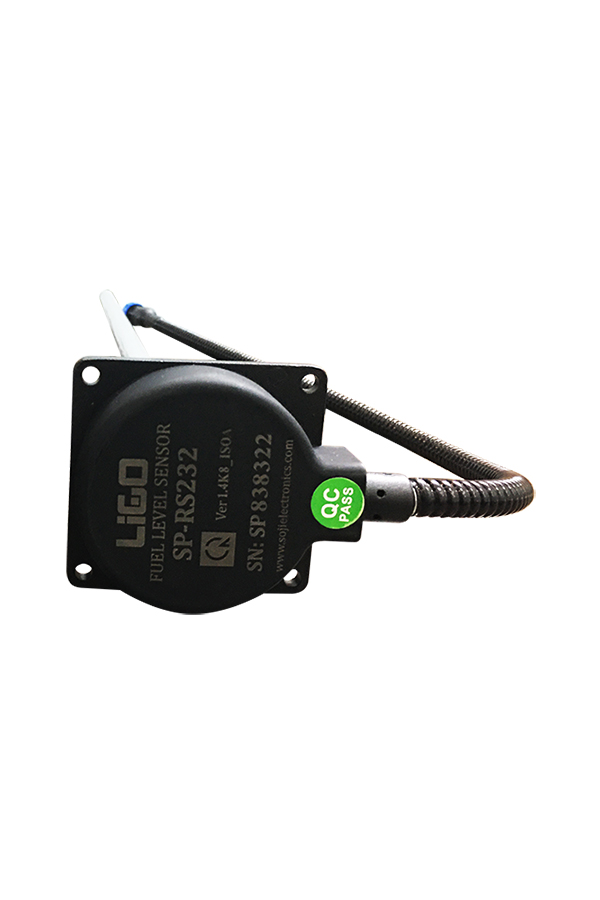

Ligo SP RS232 Fuel level sensor

Monitor fuel changes at all times 24/24
Remote prevention of fuel theft
Monitor fuel and speed at the same time
The device has good electrical isolation and fire prevention
Monitor the location of vehicle
Review the vehicle’s travel history
Safety warning: overspeed, driving continuously for more than 4 hours, geo-fenc
Detailed/Master reports: Traveling distance, starting time of engine, fuel level at the beginning of the day, fuel level at the end of the day, consumption, intake level, discharge level, …
Update Firmware Regularly
Conveniently monitor vehicle via App/Website
12–month warranty

Ligo SP RS232 is a high-precision sensor with capacitive technology. Any temperature change is strictly controlled such as: fuel consumption, new intake level, fuel before and after refill, cases of fuel theft on all types of vehicles. Helping businesses save fuel costs of fleets.

Fuel sensor connects to GPS positioning to transmit data continuously to App/Website of manager. In addition, the device has an aluminum alloy structure that helps the sensor durable over time, unaffected by the environment. The device is designed to be explosion-proof, so it is safe for vehicles.

Ligo SP RS232 integrates easily with tanks, generators, trucks, tankers, …

PARAMETER	RS232
Size, mm	700, 1000, 1500, up to … 6000
Error in measurement, %	± 0.5
Output	RS232 interface
Programmable baud rate, bit/s	2400, 4800, 9600, 19200, 38400, 57600, 115200
Power supply voltage, V, VDC	7…50
Current consumption, max, mA	40
Power consumption, max, W	0.4
Ingress protection rating	IP67
Dielectric strength of galvanic isolation, min, V	2500
OPERATING CONDITIONS:
Operating temperature, C	-40 … +85
Relative humidity at 25 °С, %	5 … 95
Air pressure, kPa	84 … 107
Maximum allowed humidity level, %	100
Resolution, bit	12
Output range of readings corresponding to the maximum value of value of measured level	4095
Output range of readings corresponding to the minimum value of value of measured level	0
Temperature measuring range, C	– 40 … + 80
Measurement frequency, s	1
Message interval, s	1…60s
Interval of automatic data output, s	1…255
Operation mode	Continuous
Working principle	(Capacitive Sensor)
Average service life, years	10
